DC Brushed Servo Motor
current location : Home>Products

Product
Details
Technical data
  • DC Brushed Servo Motor

    SR1334B

    Magner Encoder 3 Channels 1000CPT

    Nominal Voltage: 3~15V
    Torque up to (max): 1.32mNm
    No load Speed: 13200rpm
    Stall Torque: 3.4mNm
    Diameter: 13mm
    Length: 22.3mm

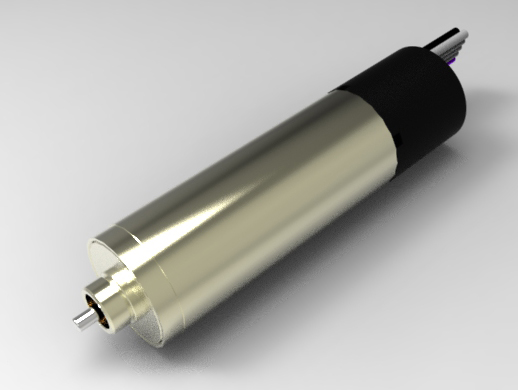

  • DC Brushed Servo Motor

    SR1347B

    Magner Encoder 3 Channels 1000CPT

    Nominal Voltage: 6~24V
    Torque up to (max): 2.5mNm
    No load Speed: 10800rpm
    Stall Torque: 14.4mNm
    Diameter: 13mm
    Length: 46.4mm
  • DC Brushed Servo Motor

    SR1636B

    Magner Encoder 3 Channels 1000CPT

    Nominal Voltage: 6~24V
    Torque up to (max): 1.5mNm
    No load Speed: 14100rpm
    Stall Torque: 5.1mNm
    Diameter: 16mm
    Length: 36.4mm
  • DC Brushed Servo Motor

    SR1654B

    Magner Encoder 3 Channels 1000CPT

    Nominal Voltage: 6~48V
    Torque up to (max): 4.4mNm
    No load Speed: 12200rpm
    Stall Torque: 37.3mNm
    Diameter: 16mm
    Length: 53.4mm
  • DC Brushed Servo Motor

    SR2237B

    Incremental Encoder 2 Channels 256CPT

    Nominal Voltage: 6~36V
    Torque up to (max): 5mNm
    No load Speed: 10900rpm
    Stall Torque: 14mNm
    Diameter: 22mm
    Length: 37.1mm
  • DC Brushed Servo Motor

    SR2242B

    Magner Encoder 3 Channels 1000CPT

    Nominal Voltage: 6~48V
    Torque up to (max): 7mNm
    No load Speed: 7430rpm
    Stall Torque: 24.4mNm
    Diameter: 22mm
    Length: 42.1mm
  • DC Brushed Servo Motor

    SR2245B

    Incremental Encoder 2 Channels 256CPT

    Nominal Voltage: 6~48V
    Torque up to (max): 7mNm
    No load Speed: 7430rpm
    Stall Torque: 24.4mNm
    Diameter: 22mm
    Length: 44.8mm
  • DC Brushed Servo Motor

    SR2342B

    Magner Encoder 3 Channels 1000CPT

    Nominal Voltage: 12~24V
    Torque up to (max): 9mNm
    No load Speed: 10000rpm
    Stall Torque: 36.4mNm
    Diameter: 23mm
    Length: 42.1mm
  • DC Brushed Servo Motor

    SR2345B

    Incremental Encoder 2 Channels 256CPT

    Nominal Voltage: 12~24V
    Torque up to (max): 9mNm
    No load Speed: 10000rpm
    Stall Torque: 36.4mNm
    Diameter: 23mm
    Length: 44.8mm
  • DC Brushed Servo Motor

    SR3085B

    Magner Encoder 3 Channels 1000CPT

    Nominal Voltage: 12~48V
    Torque up to (max): 89.7mNm
    No load Speed: 7910rpm
    Stall Torque: 1050mNm
    Diameter: 30mm
    Length: 84.5mm
