DC Motor
current location : Home>Products

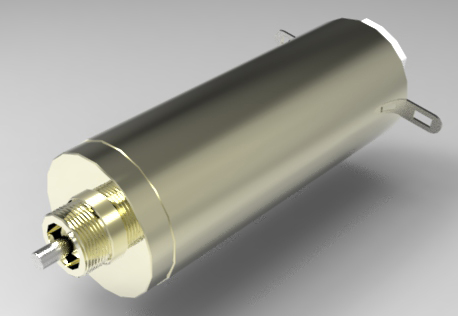

DR1322B





Model
DR132203B
DR132206B
DR132209B
DR132212B
DR132215B
Rated Power(W)
1.16
1.03
0.96
0.94
1.07
Rated Voltage(V)
3.0
6.0
9.0
12.0
15.0
Rated Torque(mNm)
1.32
1.31
1.29
1.27
1.28
Rated Speed(rpm)
8400
7500
7100
7050
7960
Diameter * Length (mm)
13*22
13*22
13*22
13*22
13*22
Rated Current(A)
0.69
0.33
0.21
0.16
0.13
Weight(Kg)
16
16
16
16
16


DR1335B





Model
DR133506B
DR133507B
DR133509B
DR133512B
DR133518B
DR133524B
Rated Power(W)
2.5
2.5
2.5
2.5
2.6
2.7
Rated Voltage(V)
6.0
7.2
9.0
12.0
18.0
24.0
Rated Torque(mNm)
2.3
2.4
2.5
2.4
2.5
2.4
Rated Speed(rpm)
10400
10000
10700
10100
10000
10800
Diameter * Length (mm)
13*35
13*35
13*35
13*35
13*35
13*35
Rated Current(A)
0.53
0.46
0.40
0.27
0.19
0.14
Weight(Kg)
23
23
23
23
23
23

DR1624B


Model
DR162406B
DR162409B
DR162412B
DR162418B
DR162424B
Rated Power(W)
0.92
1.19
1.31
1.53
1.57
Rated Voltage(V)
6.0
9.0
12.0
18.0
24.0
Rated Torque(mNm)
3.6
4.5
4.4
5.1
4.8
Rated Speed(rpm)
5860
7580
8550
9740
9980
Diameter * Length (mm)
16*24
16*24
16*24
16*24
16*24
Rated Current(A)
0.30
0.23
0.18
0.13
0.10
Weight(Kg)
21
21
21
21

21

DR1624F




Model
DR162406F
DR162409F
DR162412F
DR162418F
DR162424F
Rated Power(W)
0.92
1.19
1.31
1.53
1.57
Rated Voltage(V)
6.0
9.0
12.0
18.0
24.0
Rated Torque(mNm)
3.6
4.5
4.4
5.1
4.8
Rated Speed(rpm)
5860
7580
8550
9740
9980
Diameter * Length (mm)
16*24
16*24
16*24
16*24
16*24
Rated Current(A)
0.30
0.23
0.18
0.13
0.10
Weight(Kg)
21
21
21
21
21

DR1641B



Model
DR164106B
DR164112B
DR164118B
DR164124B
DR164136B
DR164148B
Rated Power(W)
3.2
4.8
5.0
5.5
5.5
5.6
Rated Voltage(V)
6.0
12.0
18.0
24.0
36.0
48.0
Rated Torque(mNm)
2.6
3.9
4.3
4.4
4.3
4.4
Rated Speed(rpm)
11600
11700
11100
11900
12200
12100
Diameter * Length (mm)
16*41
16*41
16*41
16*41
16*41
16*41
Rated Current(A)
0.60
0.47
0.33
0.27
0.18
0.13
Weight(Kg)
40
40
40
40
40
40

DR1641F


Model
DR164106F
DR164112F
DR164118F
DR164124F
DR164136F
DR164148F
Rated Power(W)
3.2
4.8
5.0
5.5
5.5
5.6
Rated Voltage(V)
6.0
12.0
18.0
24.0
36.0
48.0
Rated Torque(mNm)
2.6
3.9
4.3
4.4
4.3
4.4
Rated Speed(rpm)
11600
11700
11100
11900
12200
12100
Diameter * Length (mm)
16*41
16*41
16*41
16*41
16*41
16*41
Rated Current(A)
0.60
0.47
0.33
0.27
0.18
0.13
Rated Current(A)
40
40
40
40
40
40

DR2224B




Model
DR222406B
DR222412B
DR222418B
DR222424B
DR222436B
Rated Power(W)
3.61
3.46
3.31
3.51
3.38
Rated Voltage(V)
6.0
12.0
18.0
24.0
36.0
Rated Torque(mNm)
5.0
5.0
5.0
5.0
5.0
Rated Speed(rpm)
6900
6600
6320
6700
6460
Diameter * Length (mm)
22*24
22*24
22*24
22*24
22*24
Rated Current(A)
0.98
0.48
0.33
0.24
0.17
Weight(Kg)
44
44
44
44
44

DR2232B





Model
DR223206B
DR223212B
DR223218B
DR223224B
DR223236B
DR223248B
Rated Power(W)
3.37
4.90
4.85
5.37
4.76
4.28
Rated Voltage(V)
6.0
12.0
18.0
24.0
36.0
48.0
Rated Torque(mNm)
5.8
6.7
7.0
6.9
7.0
6.9
Rated Speed(rpm)
5550
6990
6620
7430
6500
5920
Diameter * Length (mm)
22*32
22*32
22*32
22*32
22*32
22*32
Rated Current(A)
0.97
0.61
0.40
0.32
0.20
0.14
Weight(Kg)
54
54
54
54
54
54

DR4045B


Model
DR404506B
DR404512B
DR404518B
DR404524B
DR404536B
Rated Power(W)
13.8
14.7
13.6
13.7
13.6
Rated Voltage(V)
6.0
12.0
18.0
24.0
36.0
Rated Torque(mNm)
30
31
31
32
32
Rated Speed(rpm)
4400
4520
4200
4090
4060
Diameter * Length (mm)
40*45
40*45
40*45
40*45
40*45
Rated Current(A)
3.7
1.9
1.2
1.0
0.6
Weight(Kg)
220
220
220
220
220

DR4071B



Model
DR407112B
DR407124B
DR407148B-01
DR407148B-02
DR407148B-03
Rated Power(W)
64
122
137
113
91
Rated Voltage(V)
12.0
24.0
48.0
48.0
48.0
Rated Torque(mNm)
95
220
187
186
180
Rated Speed(rpm)
6380
5300
7000
5800
4920
Diameter * Length (mm)
40*71
40*71
40*71
40*71
40*71
Rated Current(A)
5.8
5.6
3.0
2.6
2.1
Weight(Kg)
480
480
480
480
480

SR2237




Model
SR223706
SR223712
SR223718
SR223724
SR223736
Rated Power(W)
3.61
3.46
3.31
3.51
3.38
Rated Voltage(V)
6.0
12.0
18.0
24.0
36.0
Rated Torque(mNm)
5.0
5.0
5.0
5.0
5.0
Rated Speed(rpm)
6900
6600
6320
6700
6460
Diameter * Length (mm)
22*37
22*37
22*37
22*37
22*37
Rated Current(A)
0.98
0.48
0.33
0.24
0.17
Weight(Kg)
58
58
58
58
58


SR2245



Model
SR224506
SR224512
SR2245018
SR2245024
SR224536
SR2245048
Rated Power(W)
3.37
4.90
4.85
5.37
4.76
4.28
Rated Voltage(V)
6.0
12.0
18.0
24.0
36.0
48.0
Rated Torque(mNm)
5.8
6.7
7.0
6.9
7.0
6.9
Rated Speed(rpm)
5550
6990
6620
7430
6500
5920
Diameter * Length (mm)
22*45
22*45
22*45
22*45
22*45
22*45
Rated Current(A)
0.97
0.61
0.40
0.32
0.20
0.14
Weight(Kg)
68
68
68
68
68
68
