DC Brushless motors
current location : Home>Products

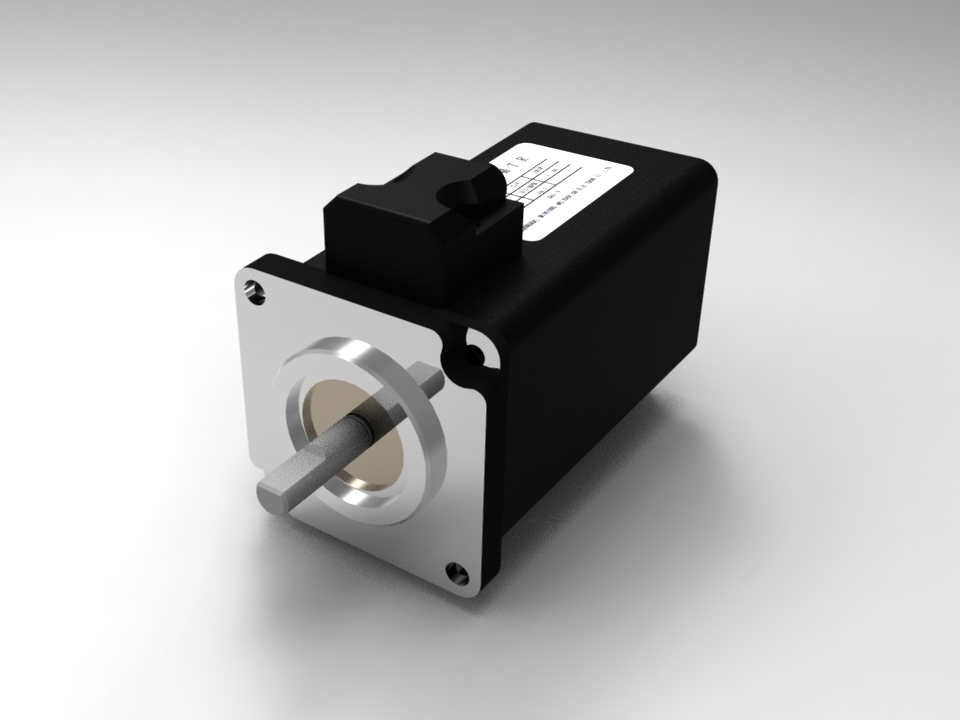

BMP45



Model BMP4512 BMP4524 BMP4536
Rated Power(W)
57
126
176
Rated Voltage(V)
12
24
36
Rated Torque(Nm)
0.18
0.16
0.14
Rated Speed(rpm)
3000
7500
12000
Flange * Length (mm)
45*73.5
45*73.5
45*73.5
Rated Current(A)
8.5
7.5
6.6
Weight(Kg)
0.52
0.52 0.52

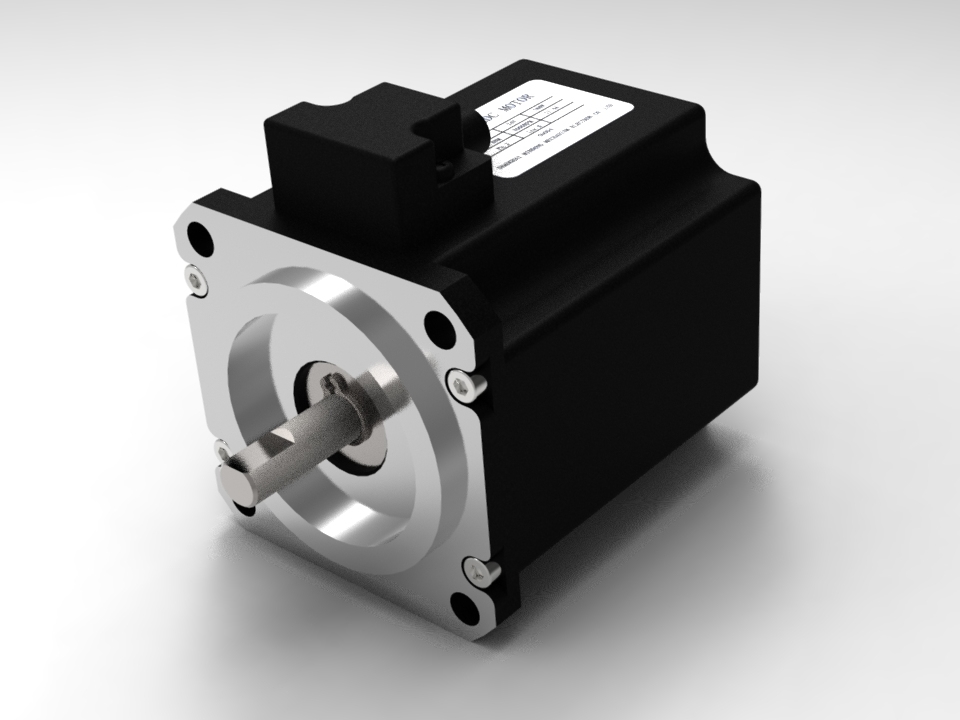

BMP62

Model BMP6212 BMP6224 BMP6236
Rated Power(W)
188 188
284
Rated Voltage(V)
12
24
36
Rated Torque(Nm)
0.6
0.6
0.6
Rated Speed(rpm)
3000
3000
4500
Flange * Length (mm)
62*73
62*73
62*73
Rated Current(A)
22.8 11.4 11.4
Weight(Kg)
0.83
0.83 0.83

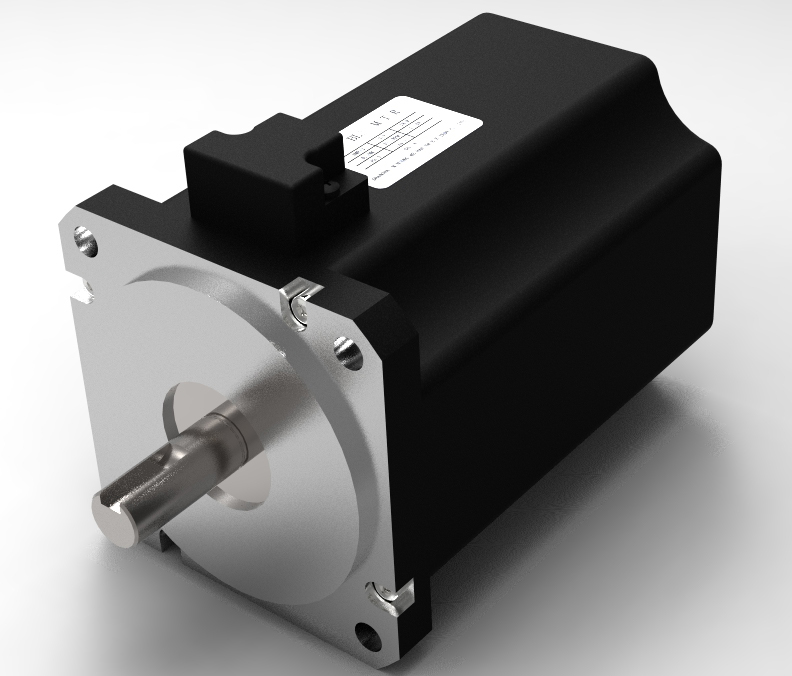

BMP80

Model BMP8024 BMP8048
Rated Power(W)
382 382
Rated Voltage(V)
24 48
Rated Torque(Nm)
1.0 1.0
Rated Speed(rpm)
3650
3650
Flange * Length (mm)
80*114
80*114
Rated Current(A)
21.6 10.8
Weight(Kg)
1.7 1.7

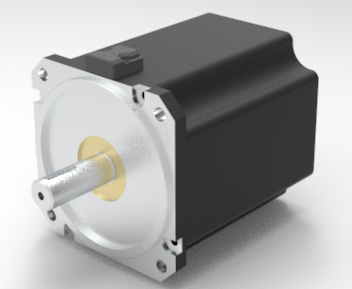

BMP100

Model BMP10048 BMP10072
Rated Power(W)
600 900
Rated Voltage(V)
48 72
Rated Torque(Nm)
2.5 2.5
Rated Speed(rpm)
2300 3450
Flange * Length (mm)
100*125
100*125
Rated Current(A)
15 15
Weight(Kg)
3.8 3.8

BMP62B

Model BMP6212B BMP6224B BMP6236B
Rated Power(W)
188 188
284
Rated Voltage(V)
12
24
36
Rated Torque(Nm)
0.6
0.6
0.6
Rated Speed(rpm)
3000
3000
4500
Flange * Length (mm)
62*128
62*128
62*128
Rated Current(A)
22.8 11.4 11.4
Weight(Kg)
1.21 1.21 1.21


BMP80B

Model BMP8024B BMP8048B
Rated Power(W)
382 382
Rated Voltage(V)
24 48
Rated Torque(Nm)
1.0 1.0
Rated Speed(rpm)
3650
3650
Flange * Length (mm)
80*149
80*149
Rated Current(A)
21.6 10.8
Weight(Kg)
2.48 2.48




BMP100B

Model BMP10048B BMP10072B
Rated Power(W)
600 900
Rated Voltage(V)
48 72
Rated Torque(Nm)
2.5 2.5
Rated Speed(rpm)
2300 3450
Flange * Length (mm)
100*165
100*165
Rated Current(A)
15 15
Weight(Kg)
5.0 5.0
